Specification : intrusment.wordpress.com

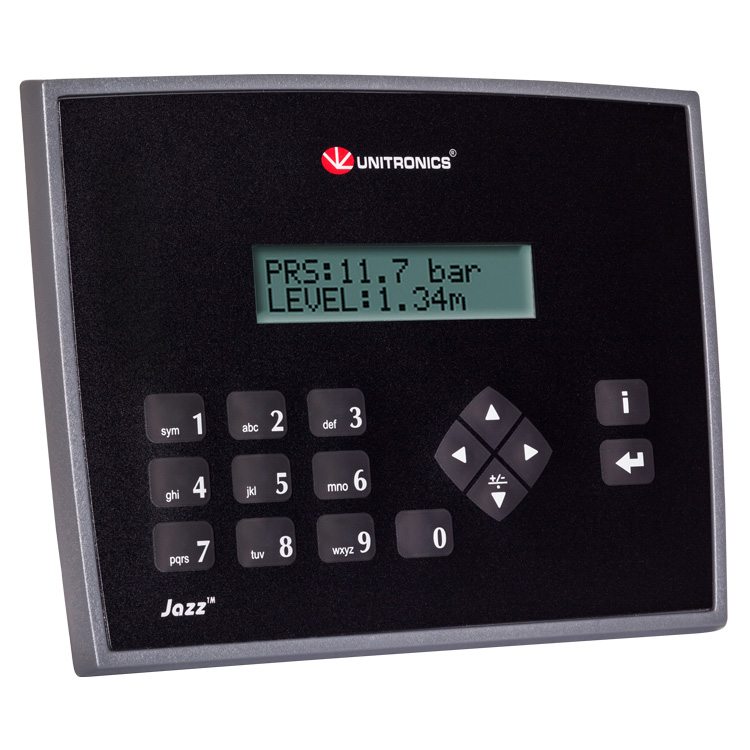

Jazz®

Program

Ladder Code
Memory (virtual)

JZ20
JZ10

48K
models 24K

Memory Operands

256 coils, 256 registers, 64 timers

Operator Panel

Type

STN LCD

Display Size

2 lines x 16 characters

Keypad

Keys

16 keys, 10 of which may be user-labeled

General

Power Supply

24VDC

Battery

10 years typical at 25°C, battery back-up for RTC and system data, including variable data

Clock

Real-time clock functions (date and time)

Environment

IP65/NEMA4X ( when panel mounted)

Standard

CE, UL
Many of our products are also UL Class 1 Div 2 and GOST certified - please contact Unitronics

Programming Port

JZ20
JZ10

On Board Mini USB
Article No. : JZ-PRG sold separately

Communication

Serial

RS232/RS485 Add-on port (isolated) Article No.: JZ-RS4 sold separately

Ethernet

JZ20

JZ10

Ethernet add on port Article No.: MJ20-ET1 sold separately

Not supported




Inputs 1

Outputs



Article

Summary

Digital 2

HSC/Shaft-encoder 2

Analog

Temperature
Measurement

Transistor3

PWM/HSO3

Relay

Analog

Operating
Voltage

JZ20-J-R10
JZ20-R10

6 Digital Inputs
4 Relay Outputs

6


10kHz, 16-bit


None

None

None

None

4

None

24VDC



JZ20-R16
JZ20-J-R16

6 Digital,
2 D/A , 2 Analog Inputs1
6 Relay Outputs




8




0-10V
10 or 12-bit

0-20mA, 4-20mA
10-bit

None

None

None

6

None

24VDC

JZ20-J-R16HS

6 Digital, 3 3HSC/Shaft-encoder, 2 A/D, 2 AI, 6 Relay outputs






8


0-10V
10 or 12-bit

0-20mA,
4-20mA
10-bit

None

None

None

6

None

24VDC

JZ20-R31
JZ20-J-R31

16 Digital, 2 D/A , 2 Analog Inputs1
11 Relay Outputs





18


0-10V
10 or 12-bit

0-20mA, 4-20mA
10-bit

None

None

None

11

None

24VDC

JZ20-T10
JZ20-J-T10

6 DigitalInputs
4 Transistor Outputs

6

None

None

4
pnp

None

None

None

24VDC

JZ20-T18
JZ20-J-T18

6 Digital, 2 D/A, 2 Analog Inputs1
8 Transistor Outputs





8


0-10V
10-bit

0-20mA, 4-20mA
10-bit

None


pnp

None

None

None

24VDC

JZ20-J-T20HS

6 Digital, 3 3HSC/Shaft-encoder, 2 A/D, 2 AI, 10 Transistor outputs



8


0-10V
10-bit

None


pnp

2
32kHz

None

None

24VDC

JZ20-T40
JZ20-J-T40

16 Digital, 2 D/A, 2 Analog Inputs1
20 Transistor Outputs





18

None

None

20
pnp

None

None

None

24VDC

JZ20-UA24
JZ20-J-UA24

9 Digital Inputs,
1 HSC, 2 A/D, 2 AI,
2 TC/PT100,
5 Relay Outputs,
2 Transistor Outputs, 2 AO


11

2
0-20mA
4-20mA

2
0-10 VDC

2
Thermocouple, PT100

2
pnp

2

5


10V
4-20mA 12-bit

24VDC

JZ10-11-PT15
JZ10-J-PT15

3 Digital, 3 D/A,
3 PT1000/NI1000 Inputs1
3 Relay 1 Transistor Outputs

6






0-10V^2
10-bit


PT1000/NI1000


1
pnp

1

5

None

24VDC

JZ10-11-UN20
JZ10-J-UN20

9 Digital, 2 D/A1, Analog
1 TC/PT100 Inputs1
5 Relay 2 Transistor Outputs

11


5kHz, 16-bit


0-10V
10-bit

0-20mA, 4-20mA
10-bit


Thermocouple, PT100

2
pnp

2

5

None

24VDC
